System Architecture

Suot is a client-side single-page web application. All backend logic — authentication, database, file storage, and real-time communication — is handled by Supabase. The browser communicates directly with Supabase over HTTPS; there is no custom application server.

Client Layer — Browser (Vanilla JS ES Modules)

Login / Register

Dashboard / Catalog

Messages

Home Feed

Wallet / Top-Up

Profile / Friends

Super Admin

↕ supabase-js v2 SDK — HTTPS REST + WebSocket

Backend Layer — Supabase (BaaS)

Auth Service

PostgreSQL DB

Realtime / Broadcast

File Storage

DB Triggers / RLS

↕ Direct API calls (no app server)

External Services

Gemini AI API

Nominatim (OpenStreetMap)

Google OAuth

OpenRelay TURN (WebRTC)

Google Fonts / CDN

02 — Admin Layer

Super Admin System Flow & Control Layer

The Super Admin module provides centralized control over platform operations, including user management, content moderation, transaction monitoring, and system-level configuration. Unlike standard users, the admin interacts with privileged database operations enforced through Supabase Row Level Security (RLS) and role-based access control. All actions are executed directly via secured API calls to Supabase, ensuring real-time oversight without a dedicated backend server.

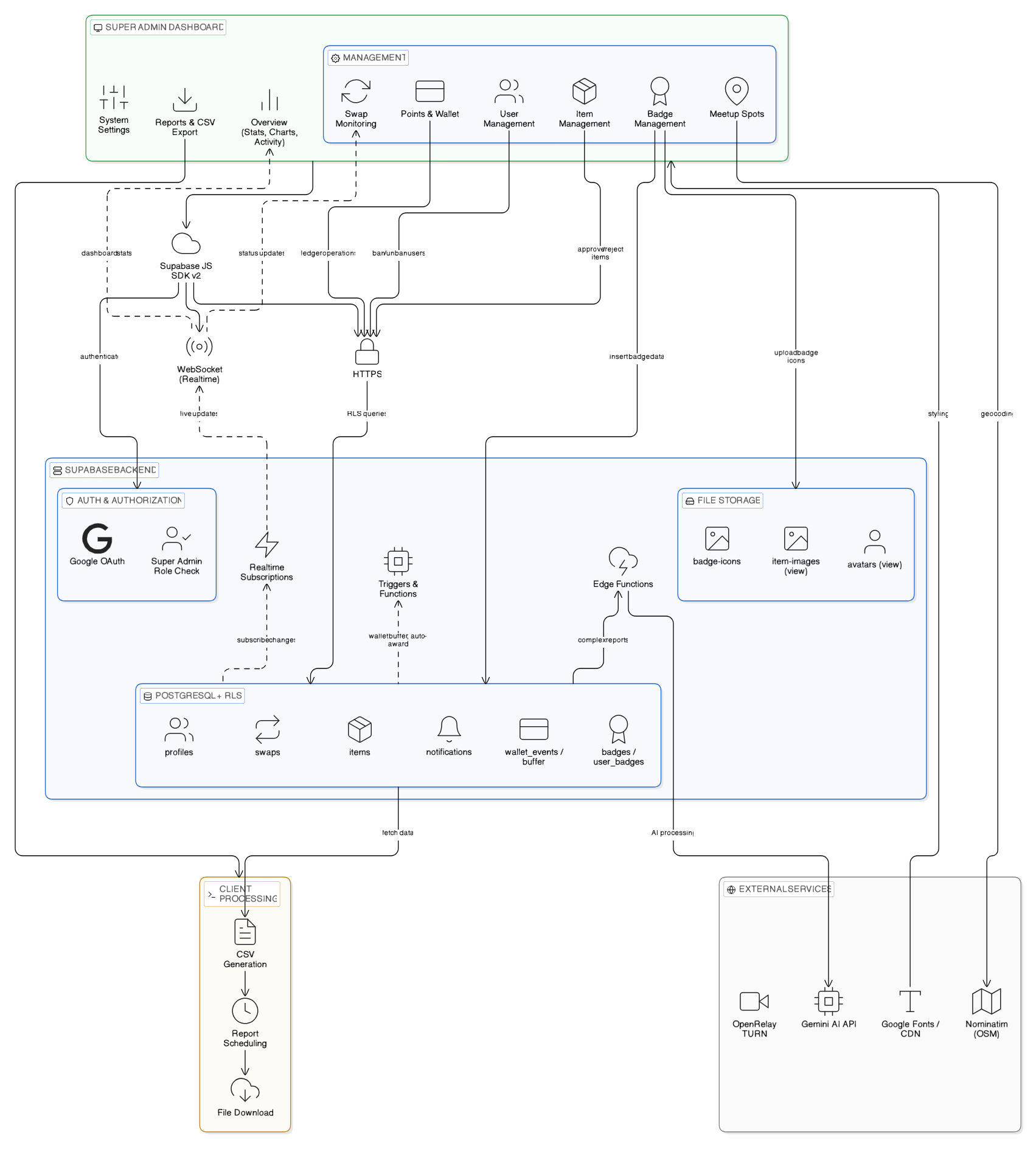

Super Admin — System Control Architecture

03 — User Journey

Core Swap Flow

The primary user journey — from discovering an item to completing a verified swap — involves 8 distinct steps across 5 pages, with the database transaction secured by a dual OTP confirmation.

1

Authentication

User registers or signs in via email/password or Google OAuth. Supabase Auth issues a JWT. A trigger auto-creates a profiles row on first sign-up. Session stored in Supabase's cookie-based storage.

auth/login.html → dashboard

2

Browse Catalog

Dashboard fetches all available items via fetchItems(). User can filter by category, sort by distance (Haversine formula against device geolocation), or browse the Home feed by hashtag.

dashboard/dashboard.html + personal/home.html

3

Post an Item

Seller fills form → images uploaded to Supabase Storage (item-images bucket) → public URLs saved in items.images[]. Meetup pin coordinates saved via Leaflet + Nominatim reverse geocoding.

personal/post-item.html → items table

4

Initiate Swap

Requester picks an offer (their item or pts) → swaps row created with status: 'pending' → swap request message auto-inserted in messages table → notification sent to item owner.

personal/item-detail.html → swaps table

5

Negotiate in Chat

Both users chat in real-time via Supabase Realtime Postgres changes. Swap offer card rendered inline. Owner can accept, decline, or counter. Accepted → status changes to otp_pending.

personal/message.html → messages + swaps

6

Video Call (Optional)

Either user initiates a WebRTC video call. Signaling (SDP offer/answer + ICE candidates) exchanged via Supabase Broadcast. No third-party service — peer-to-peer with OpenRelay TURN fallback.

WebRTC + Supabase Broadcast vc-{userId}

7

OTP Confirmation

Each party generates a 4-digit code stored in swaps.otp_requester/otp_owner. They swap codes in person, enter the other's code in the app. On match → transferSwapPts() runs → items marked swapped.

swaps table → status: 'swapped'

8

Points Settlement

Postgres trigger fn_circulation_check fires on pts update — caps active wallet at 2,500 pts, moves overflow to circulation_buffer (expires in 30 days), auto-refills if active ≤ 500. All logged to wallet_events.

profiles.pts → DB trigger → wallet_events

04 — Data Model

Entity Relationship Diagram

All data lives in Supabase PostgreSQL. Row Level Security policies ensure users can only read/write their own data. Every table uses UUIDs as primary keys generated by gen_random_uuid(). Required tables: profiles, items, swaps, messages, wishlist, follows, notifications, wallet_events, posts, post_reactions, stories.

profiles

iduuid PK

usernametext UNIQUE

display_nametext

avatar_urltext

ptsint DEFAULT 500

circulation_bufferint DEFAULT 0

buffer_expires_attimestamptz

bio, locationtext

items

iduuid PK

user_iduuid FK→profiles

name, categorytext

imagestext[]

ptsint

condition, sizetext

latitude, longitudefloat8

statustext DEFAULT 'available'

swaps

iduuid PK

requester_iduuid FK→profiles

owner_iduuid FK→profiles

requested_item_iduuid FK→items

offered_item_iduuid FK→items NULL

offered_ptsint DEFAULT 0

statustext

otp_requester, otp_ownertext

messages

iduuid PK

from_user_iduuid FK→profiles

to_user_iduuid FK→profiles

bodytext

msg_typetext

item_id, swap_iduuid FK NULL

reactionsjsonb DEFAULT {}

readbool DEFAULT false

wallet_events

iduuid PK

user_iduuid FK→profiles

event_typetext (CHECK)

amountint

from_wallettext

to_wallettext

notetext

notifications

iduuid PK

user_iduuid FK→profiles

typetext

messagetext

linktext

thumbnail_urltext

readbool DEFAULT false

wishlist

iduuid PK

user_iduuid FK→profiles

item_iduuid FK→items

UNIQUE(user_id, item_id)constraint

follows

iduuid PK

follower_iduuid FK→profiles

following_iduuid FK→profiles

UNIQUE(follower_id, following_id)constraint

posts

iduuid PK

user_iduuid FK→profiles

captiontext

imagestext[]

hashtagstext[]

linked_item_iduuid FK→items NULL

post_reactions

iduuid PK

post_iduuid FK→posts

user_iduuid FK→profiles

reaction_typetext (CHECK)

UNIQUE(post_id, user_id)constraint

stories

iduuid PK

user_iduuid FK→profiles

image_urltext

expires_attimestamptz

viewersuuid[]

Key Relationships

profiles→items1 : many (owns)

profiles→swaps1 : many (as requester OR owner)

items→swaps1 : many (requested_item OR offered_item)

profiles→messages1 : many (from_user OR to_user)

profiles→wallet_events1 : many (all financial movements)

profiles↔profilesmany : many via follows

posts→post_reactions1 : many (one reaction type per user per post)

05 — Components

Module Structure

Suot is organized into five directories under src/, plus a top-level docs/ folder at the repository root for SQL schemas and documentation. Each page is a self-contained HTML file with an inline or imported ES module script. All database calls are centralized in db/supabase.js.

Suot/ ← repository root

├── docs/ ← SQL schemas & this document (root-level)

├── src/

│ ├── auth/

│ ├── dashboard/ + admin-dashboard.html

│ ├── personal/

│ ├── profile/

│ └── db/

├── .gitignore

└── README.md

auth/

htmllogin.htmlSign in / Sign up

jsscript.jsAuth logic, Google OAuth

cssstyle.cssLanding page styles

dashboard/

newadmin-dashboard.htmlSuper admin panel

htmldashboard.htmlCatalog + filters

jsdashboard.jsItem loading, geo sort

cssdashboard.cssShared layout

htmltopup.html3-step Pasa-Points top-up

jstopup.jsTop-up flow logic

csstopup.cssTop-up stylesheet

htmlwallet.htmlWallet + history

jswallet.jsPasa-Points & buffer logic

csswallet.cssWallet stylesheet

personal/

htmlhome.htmlFeed + stories

htmlmessage.htmlChat + video call

htmlpost-item.htmlList item + map

htmlitem-detail.htmlItem page + swap

htmlwishlist.htmlSaved items

htmlfriends.htmlFollow system

jsconfig.jsGemini API key (gitignored)

profile/

htmlprofile.htmlUser profile view

htmledit-profile.htmlEdit info + avatar

db/

jssupabase.jsClient init + all DB helper functions

docs/ (repo root)

sqlsupabase-schema.sqlCore tables

sqlhome-feed-v2.sqlFeed tables

sqlwallet-circulation.sqlWallet trigger

htmlarchitecture.htmlThis document

imgsuper_admin.pngAdmin arch diagram

06 — External Systems

Systems Integration

Suot integrates with five external services. All calls are made directly from the browser (no proxy server). Sensitive keys are kept in config.js which is excluded from version control.

Service	Purpose	Protocol	Auth	Cost
Supabase	Auth, PostgreSQL database, file storage, realtime messaging	HTTPS REST WebSocket	Anon Key + JWT	Free tier
Google Gemini	AI-powered Pasa-Points price suggestion for listed items	HTTPS REST	API Key (config.js)	Free tier
OpenStreetMap / Nominatim	Forward & reverse geocoding for meetup location pins	HTTPS REST	None (rate limited)	Free
Google OAuth	Social sign-in — users can register/log in with their Google account	OAuth 2.0	Client ID via Supabase	Free
OpenRelay TURN	TURN relay fallback for WebRTC video calls on restricted networks	TURN/UDP+TCP	Username/credential	Free
Google Fonts	Web font delivery — Playfair Display, Inter, Great Vibes, DM Sans	HTTPS CDN	None	Free

07 — Video Calling

WebRTC Call Sequence

Video calls use native browser WebRTC — no third-party video service or meeting codes. Supabase Realtime Broadcast acts as the signaling channel to exchange SDP and ICE candidates between peers.

Caller Browser

Supabase Broadcast

Callee Browser

STUN / TURN

① SIGNALING PHASE

→

Caller: getUserMedia() + createOffer()

Browser requests camera/mic permission. RTCPeerConnection created with ICE servers. SDP offer generated and set as local description.

→

sendSignal(calleeId, 'incoming_call', {offer, callerInfo})

SDP offer embedded in the broadcast payload. Supabase Realtime delivers it to the callee's subscribed vc-{calleeId} channel. No REST fallback — channel awaits SUBSCRIBED state before send.

Supabase Broadcast → vc-{calleeId}

→

Callee: getUserMedia() + setRemoteDescription(offer) + createAnswer()

Callee accepts call, gets camera/mic, applies the offer as remote description, generates SDP answer.

←

sendSignal(callerId, 'call_accepted', {answer})

SDP answer sent back to caller. Caller sets it as remote description.

Supabase Broadcast → vc-{callerId}

② ICE NEGOTIATION

↔

ICE candidates exchanged via Supabase Broadcast

Each browser's onicecandidate fires and sends candidates to the peer. Candidates queued in iceCandidateQueue[] if remote description isn't set yet, then flushed.

STUN: discovers public IP — TURN: relays if P2P blocked

③ MEDIA STREAM

▶

ontrack fires → remoteVideo.srcObject = stream

Peer-to-peer audio/video flows directly between browsers (or via TURN relay). "Connecting…" overlay hidden. Call timer starts.

④ CALL END

✕

sendSignal(peerId, 'call_ended', {duration})

Duration passed in payload. Both sides render an inline chat message: "Video call · 2m 34s". All media tracks stopped. RTCPeerConnection closed.

08 — Business Logic

Wallet Circulation System

Points management is enforced entirely in the database via a PostgreSQL BEFORE UPDATE trigger. No client-side enforcement — the rule fires regardless of which page updates pts.

Wallet Rules

Active cap2,500 pts

Overflow triggerpts > 2500

Overflow actionexcess → buffer

Refill triggerpts ≤ 500

Refill amounttop up to 2500

Buffer expiry30 days

wallet_events types

topupUser topped up via payment method

overflowExcess moved to buffer automatically

refillBuffer refilled active wallet

spendPoints spent on swap request

earnPoints earned from swap completion

adminManual adjustment

fn_circulation_check() — Postgres Trigger

BEFORE UPDATE OF pts ON profiles
  IF NEW.pts > 2500 THEN
    excess := NEW.pts - 2500
    NEW.pts := 2500
    NEW.circulation_buffer += excess
    NEW.buffer_expires_at := NOW() + INTERVAL '30 days'
    INSERT INTO wallet_events (overflow, excess) ...

  ELSIF NEW.pts <= 500 AND NEW.circulation_buffer > 0 THEN
    refill := LEAST(2500 - NEW.pts, NEW.circulation_buffer)
    NEW.pts += refill
    NEW.circulation_buffer -= refill
    INSERT INTO wallet_events (refill, refill) ...

09 — Stack Summary

Technology Stack

Every technology choice prioritizes zero monthly cost and zero infrastructure management — appropriate for a student project that must remain live for grading.

HTML5 + CSS3

Vanilla JS ES Modules

Supabase (BaaS)

PostgreSQL

Leaflet.js + OpenStreetMap

Google Gemini AI

WebRTC (native)

Google OAuth 2.0

OpenRelay TURN
